gitlab
http://192.168.13.11/
root kbshire1

jenkins
http://192.168.13.12:8080/
admin kbshire1

tomcat
http://192.168.13.13:8080/

harbor
https://192.168.13.14/
admin Harbor12345
Eric123456

maven
192.168.13.12

sonarqube
192.168.13.12:9000
admin
admin
token: 8bf0de8a91bef59c1afd4c942935f8fbc1f9db1f

mysql
192.168.13.12:3306
root
123456

k8s-jenkins
http://192.168.13.15:32688/
kbshire1

(*)
http://47.100.66.171:30889/asynchPeople/
http://106.14.71.168:30888/admin/users/
http://192.168.13.132:8080/job/

sed -i 's/http:\/\/updates.jenkins-ci.org\/download/https:\/\/mirrors.tuna.tsinghua.edu.cn\/jenkins/g' default.json && sed -i 's/http:\/\/www.google.com/https:\/\/www.baidu.com/g' default.json

cd /etc/init.d

# 启动
./jenkins start
# 停止
./jenkins stop
# 状态
./jenkins status


openssl req -sha512 -new -subj "/C=CN/ST=JS/L=WX/O=zwx/OU=jhmy/CN=192.168.13.14" -key harbor.key -out harbor.csr

jenkins
用户名 - kbshire

tar -xzf apache-maven-3.6.2-bin.tar.gz 解压
mkdir -p /opt/maven 创建目录
mv apache-maven-3.6.2/* /opt/maven 移动文件

或者yum install maven

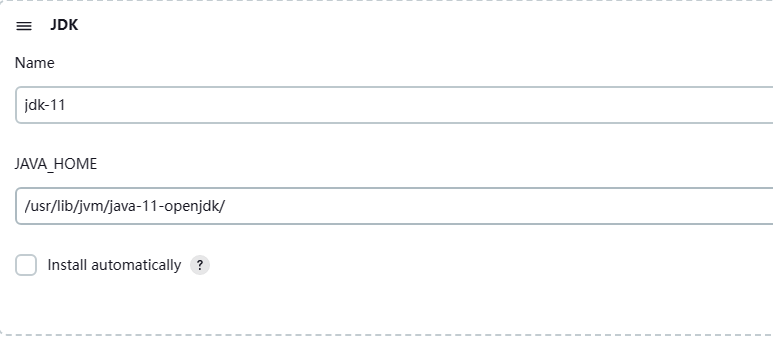

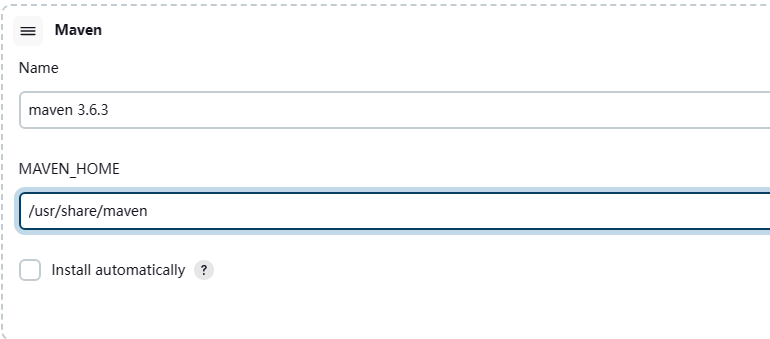

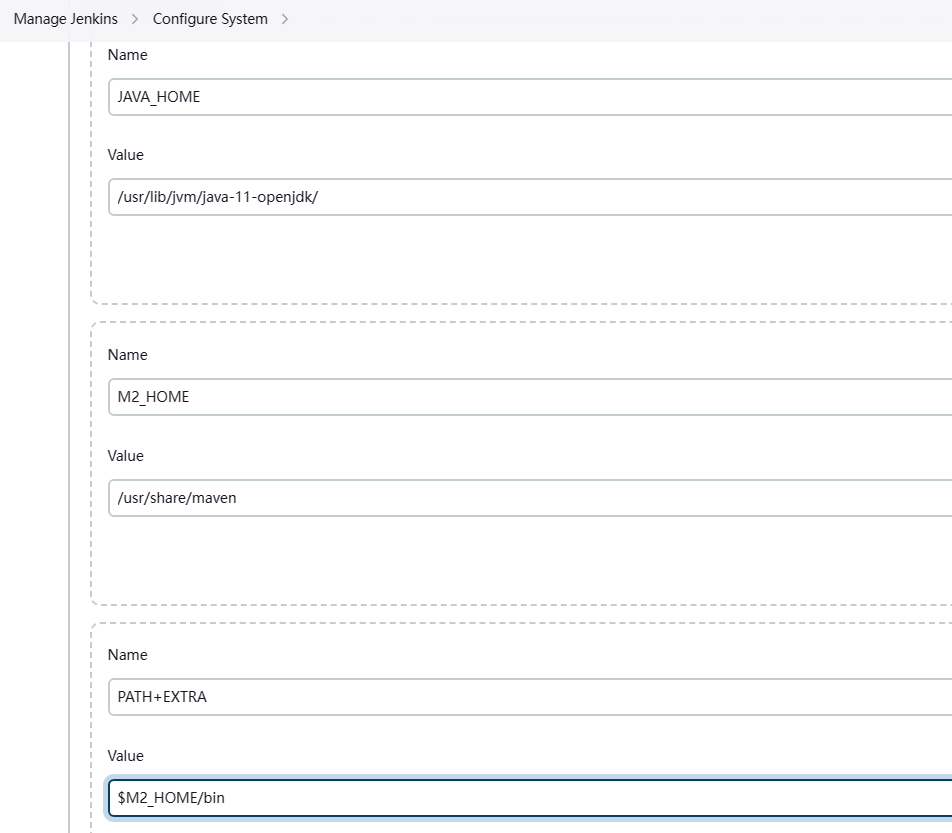

export JAVA_HOME=/usr/lib/jvm/java-11-openjdk/
export MAVEN_HOME=/usr/share/maven
export PATH=$PATH:$JAVA_HOME/bin:$MAVEN_HOME/bin

mkdir /root/repo 创建本地仓库目录
vi /opt/maven/conf/settings.xml

本地仓库改为：/root/repo/
添加阿里云私服地址：

<mirror>
    <id>aliyunmaven</id>
    <mirrorOf>*</mirrorOf>
    <name>阿里云公共仓库</name>
    <url>https://maven.aliyun.com/repository/public</url>
</mirror>

Jenkins中自动构建项目的类型有很多，常用的有以下三种：
自由风格软件项目（FreeStyle Project）
Maven项目（Maven Project）
流水线项目（Pipeline Project）
每种类型的构建其实都可以完成一样的构建过程与结果，只是在操作方式、灵活度等方面有所区别，在
实际开发中可以根据自己的需求和习惯来选择。（个人推荐使用流水线类型，因为灵活度非常高）

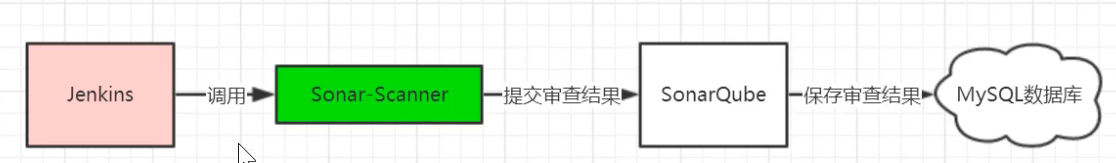

# must be unique in a given SonarQube instance
sonar.projectKey=free_style
# this is the name and version displayed in the SonarQube UI. Was mandatory prior to SonarQube 6.1.
sonar.projectName=free_style
sonar.projectVersion=1.0
# Path is relative to the sonar-project.properties file. Replace "\" by "/" on Windows.
# This property is optional if sonar.modules is set.
sonar.sources=.
sonar.exclusions=**/test/**,**/target/**

sonar.java.source=11
sonar.java.target=11
# Encoding of the source code. Default is default system encoding
sonar.sourceEncoding=UTF-8

pipeline {
    agent any

    stages {
        stage('pull images') {
            steps {

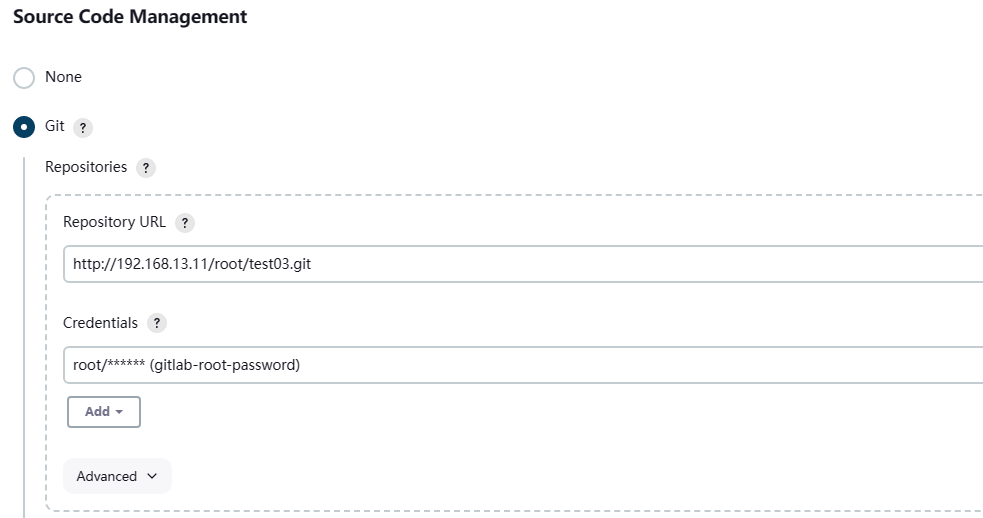

                checkout scmGit(branches: [[name: '*/master']], extensions: [], userRemoteConfigs: [[credentialsId: '5e7e7a6e-744e-498b-8790-924dfd4e42a8', url: 'http://192.168.13.11/root/test04.git']])
            }
        }
        stage('pull images') {
            steps {
                script {
                    scannerHome = tool 'sonarqube-scanner'
                }
                withSonarQubeEnv('sonarqube6.7.4') {
                sh "${scannerHome}/bin/sonar-scanner"
                }
            }
        }
        stage('build project') {
            steps {

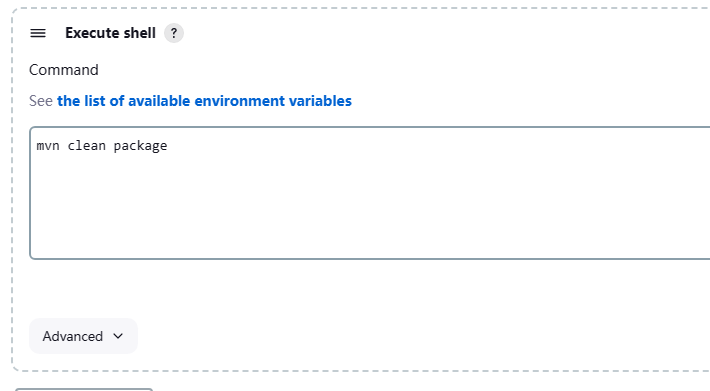

                sh 'mvn clean package'
            }
        }
        stage('deploy project') {
            steps {
                deploy adapters: [tomcat9(credentialsId: 'b3de0bd0-bcbe-4680-8b56-7e748ef40984', path: '', url: 'http://192.168.13.13:8080/')], contextPath: null, war: 'target/untitled4_war exploded.war'
            }
        }
    }
}

Harbor需要安装在192.168.66.102上面
1）先安装Docker并启动Docker（已完成）
参考之前的安装过程
2）先安装docker-compose
3）给docker-compose添加执行权限
sudo chmod +x /usr/local/bin/docker-compose
4）查看docker-compose是否安装成功
docker-compose -version
5）下载Harbor的压缩包（本课程版本为：v1.9.2）
https://github.com/goharbor/harbor/releases
6）上传压缩包到linux，并解压
tar -xzf harbor-offline-installer-v1.9.2.tgz
mkdir /opt/harbor
mv harbor/* /opt/harbor
cd /opt/harbor
7）修改Harbor的配置
sudo curl -L https://github.com/docker/compose/releases/download/1.21.2/docker￾compose-$(uname -s)-$(uname -m) -o /usr/local/bin/docker-compose
sudo chmod +x /usr/local/bin/docker-compose
vi harbor.yml
修改hostname和port
hostname: 192.168.66.102
port: 85
8）安装Harbor
./prepare
./install.sh
9）启动Harbor
docker-compose up -d 启动
docker-compose stop 停止
docker-compose restart 重新启动

openssl req -x509 -new -nodes -sha512 -days 3650 \
 -subj "/C=CN/ST=Beijing/L=Beijing/O=example/OU=Personal/CN=192.168.13.14" \
 -key ca.key \
 -out ca.crt


 openssl req -sha512 -new \
    -subj "/C=CN/ST=Beijing/L=Beijing/O=example/OU=Personal/CN=192.168.13.14" \
    -key 192.168.13.14.key \
    -out 192.168.13.14.csr


cat > v3.ext <<-EOF
authorityKeyIdentifier=keyid,issuer
basicConstraints=CA:FALSE
keyUsage = digitalSignature, nonRepudiation, keyEncipherment, dataEncipherment
extendedKeyUsage = serverAuth
subjectAltName = @alt_names

[alt_names]
DNS.1=192.168.13.14
EOF

openssl x509 -req -sha512 -days 3650 \
    -extfile v3.ext \
    -CA ca.crt -CAkey ca.key -CAcreateserial \
    -in 192.168.13.14.csr \
    -out 192.168.13.14.crt

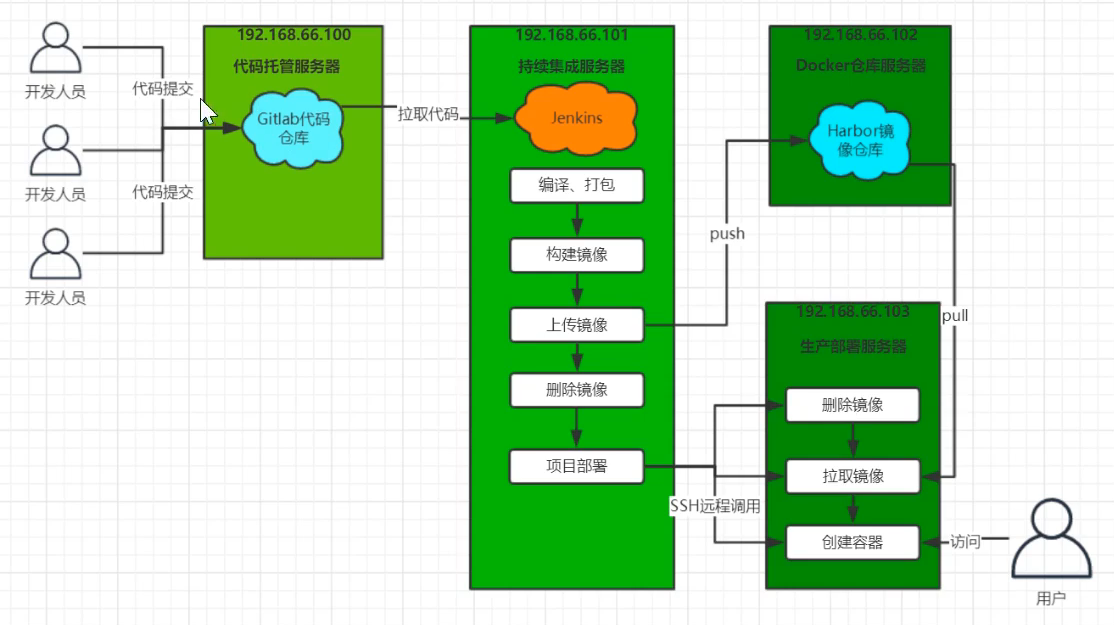

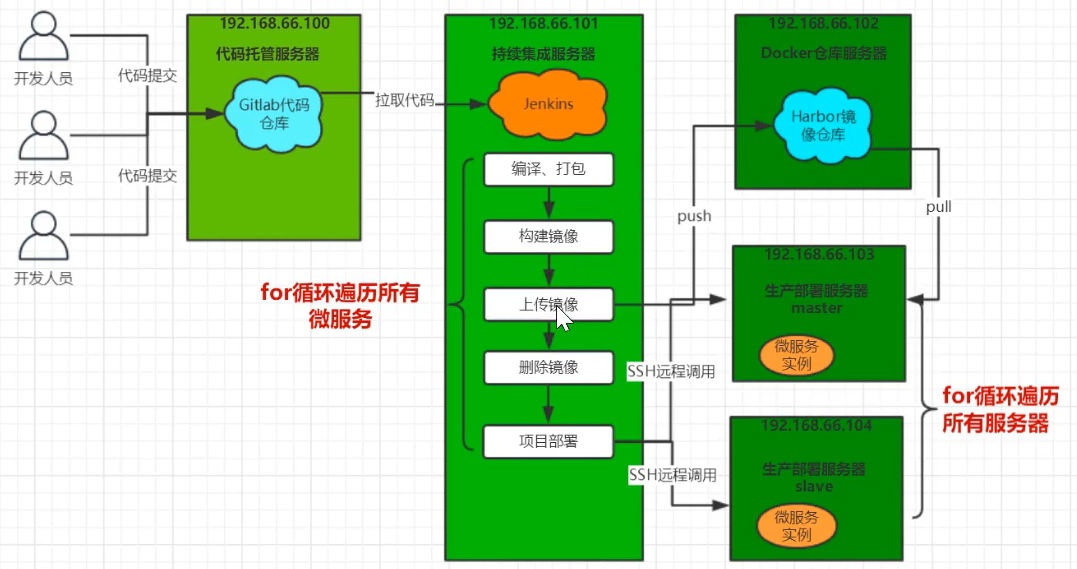

//git凭证ID
def git_auth = "b632ed00-fc81-43c8-a746-5aa0673b2658"
//git的url地址
def git_url = "git@192.168.66.100:itheima_group/tensquare_back.git"
//镜像的版本号
def tag = "latest"
//Harbor的url地址
def harbor_url = "192.168.66.102:85"
//镜像库项目名称
def harbor_project = "tensquare"
//Harbor的登录凭证ID
def harbor_auth = "833d1a75-f3db-4aec-9cc4-75a77e423163"

node {
   //获取当前选择的项目名称
   def selectedProjectNames = "${project_name}".split(",")
   //获取当前选择的服务器名称
   def selectedServers = "${publish_server}".split(",")

   stage('拉取代码') {
      checkout([$class: 'GitSCM', branches: [[name: "*/${branch}"]], doGenerateSubmoduleConfigurations: false, extensions: [], submoduleCfg: [], userRemoteConfigs: [[credentialsId: "${git_auth}", url: "${git_url}"]]])
   }
   stage('代码审查') {
        for(int i=0;i<selectedProjectNames.length;i++){
            //tensquare_eureka_server@10086
            def projectInfo = selectedProjectNames[i];
            //当前遍历的项目名称
            def currentProjectName = "${projectInfo}".split("@")[0]
            //当前遍历的项目端口
            def currentProjectPort = "${projectInfo}".split("@")[1]

            //定义当前Jenkins的SonarQubeScanner工具
            def scannerHome = tool 'sonar-scanner'
            //引用当前JenkinsSonarQube环境
            withSonarQubeEnv('sonarqube') {
                 sh """
                         cd ${currentProjectName}
                         ${scannerHome}/bin/sonar-scanner
                 """
            }
        }


   }
   stage('编译，安装公共子工程') {
      sh "mvn -f tensquare_common clean install"
   }
   stage('编译，打包微服务工程，上传镜像') {
       for(int i=0;i<selectedProjectNames.length;i++){
                 //tensquare_eureka_server@10086
                 def projectInfo = selectedProjectNames[i];
                 //当前遍历的项目名称
                 def currentProjectName = "${projectInfo}".split("@")[0]
                 //当前遍历的项目端口
                 def currentProjectPort = "${projectInfo}".split("@")[1]

                 sh "mvn -f ${currentProjectName} clean package dockerfile:build"

                 //定义镜像名称
                 def imageName = "${currentProjectName}:${tag}"

                 //对镜像打上标签
                 sh "docker tag ${imageName} ${harbor_url}/${harbor_project}/${imageName}"

                //把镜像推送到Harbor
                withCredentials([usernamePassword(credentialsId: "${harbor_auth}", passwordVariable: 'password', usernameVariable: 'username')]) {

                    //登录到Harbor
                    sh "docker login -u ${username} -p ${password} ${harbor_url}"

                    //镜像上传
                    sh "docker push ${harbor_url}/${harbor_project}/${imageName}"

                    sh "echo 镜像上传成功"
                }

                //遍历所有服务器，分别部署
                for(int j=0;j<selectedServers.length;j++){
                       //获取当前遍历的服务器名称
                       def currentServerName = selectedServers[j]

                       //加上的参数格式：--spring.profiles.active=eureka-server1/eureka-server2
                       def activeProfile = "--spring.profiles.active="

                       //根据不同的服务名称来读取不同的Eureka配置信息
                       if(currentServerName=="master_server"){
                          activeProfile = activeProfile+"eureka-server1"
                       }else if(currentServerName=="slave_server"){
                          activeProfile = activeProfile+"eureka-server2"
                       }

                       //部署应用
                       sshPublisher(publishers: [sshPublisherDesc(configName: "${currentServerName}", transfers: [sshTransfer(cleanRemote: false, excludes: '', execCommand: "/opt/jenkins_shell/deployCluster.sh $harbor_url $harbor_project $currentProjectName $tag $currentProjectPort $activeProfile", execTimeout: 120000, flatten: false, makeEmptyDirs: false, noDefaultExcludes: false, patternSeparator: '[, ]+', remoteDirectory: '', remoteDirectorySDF: false, removePrefix: '', sourceFiles: '')], usePromotionTimestamp: false, useWorkspaceInPromotion: false, verbose: false)])


                }

        }
   }
}

# 单机版
#server:
#  port: 10086
#spring:
#  application:
#    admin:
#      jmx-name: eureka-server
#eureka:
#  client:
#    fetch-registry: false
#    register-with-eureka: false
#    service-url:
#      defaultZone: http://192.168.13.13:${server.port}/eureka
#  server:
#    enable-self-preservation: false


spring:
  application:
    name: EUREKA-HA
---
server:
  port: 10086
spring:
  profiles: eureka-server1
eureka:
  instance:
    hostname: 192.168.13.13
  client:
    service-url:
      defaultZone: http://192.168.13.13:10086/eureka/,http://192.168.13.15:10086/eureka/
    register-with-eureka: false
    fetch-registry: false
---
server:
  port: 10086
spring:
  profiles: eureka-server2
eureka:
  instance:
    hostname: 192.168.13.15
  client:
    service-url:
      defaultZone: http://192.168.13.13:10086/eureka/,http://192.168.13.15:10086/eureka/
    register-with-eureka: false
    fetch-registry: false


server:
  port: 10086
spring:
  application:
    admin:
      jmx-name: eureka-server
eureka:
  client:
    fetch-registry: false
    register-with-eureka: false
    service-url:
      defaultZone: http://192.168.13.13:${server.port}/eureka
  server:
    enable-self-preservation: false

cat >>/etc/hosts<<EOF
192.168.13.12 k8s-master
192.168.13.13 k8s-node1
192.168.13.15 k8s-node2
EOF

cat <<EOF > /etc/yum.repos.d/kubernetes.repo
[kubernetes]
name=Kubernetes
baseurl=https://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64/
enabled=1
gpgcheck=0
repo_gpgcheck=0
gpgkey=https://mirrors.aliyun.com/kubernetes/yum/doc/yum-key.gpg
https://mirrors.aliyun.com/kubernetes/yum/doc/rpm-package-key.gpg
EOF

kubeadm init --kubernetes-version=1.21.2 \
--apiserver-advertise-address=192.168.13.12  \
--image-repository registry.aliyuncs.com/google_containers \
--service-cidr=10.1.0.0/16 \
--pod-network-cidr=10.244.0.0/16

kubeadm join 192.168.13.12:6443 --token l1x1ji.yonc002xc0vhf9vv \
	--discovery-token-ca-cert-hash sha256:75a8c65d8521a2f275fae4e4c6ff40fbe2c518d54ed6348a408d20b8443d0eb2

def git_address = "http://192.168.13.11/root/tensquare_back.git"
def git_auth = "322ed148-5eda-40c0-9c47-eb89edf08c69"
//创建一个Pod的模板，label为jenkins-slave
podTemplate(label: 'jenkins-slave', cloud: 'kubernetes', containers: [
    containerTemplate(
        name: 'jnlp',
        image: "192.168.13.14:85/library/jenkins-slave-maven:latest"
    )
]
)
{
//引用jenkins-slave的pod模块来构建Jenkins-Slave的pod
    node("jenkins-slave"){
    // 第一步
        stage('拉取代码'){
            checkout([$class: 'GitSCM', branches: [[name: '*/master']], extensions: [], userRemoteConfigs: [[credentialsId: "${git_auth}", url: "${git_address}"]]])
        }
    }
}
